DPT ultra-quiet centrifugal duct fans Manufacturers

Home / Product / DPT ultra-quiet centrifugal duct fans

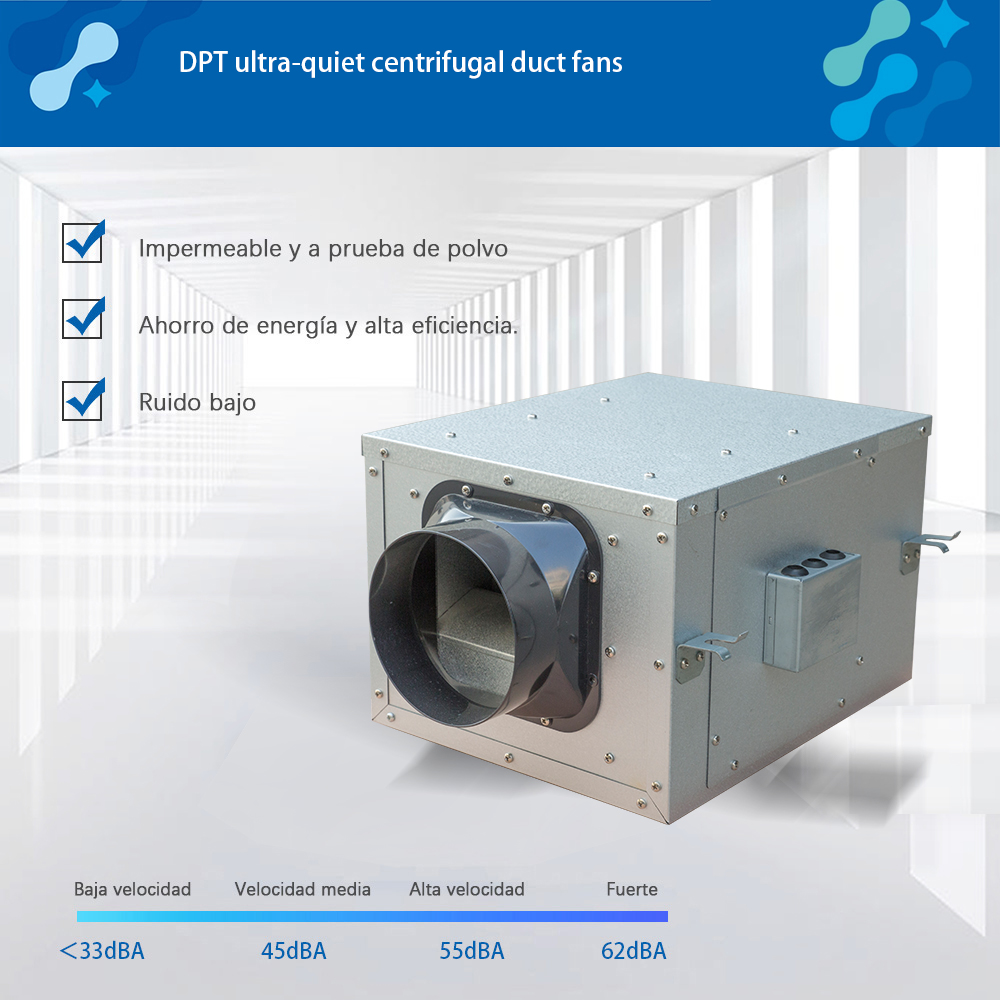

DPT ultra-quiet centrifugal duct fans

DPT ultra-quiet centrifugal duct fans

  • Description
  • Quiet and low noise
    Noise-cancelling box
    high air volume
    Centrifugal high pressure fan
    metal shell
    High-quality steel plate without welding
    small volume
    Easy installation and wide application
    Processing technology
    Fan impeller and casing are made of high-quality steel plate
    Worry-free after-sales
    One year return, lifetime warranty

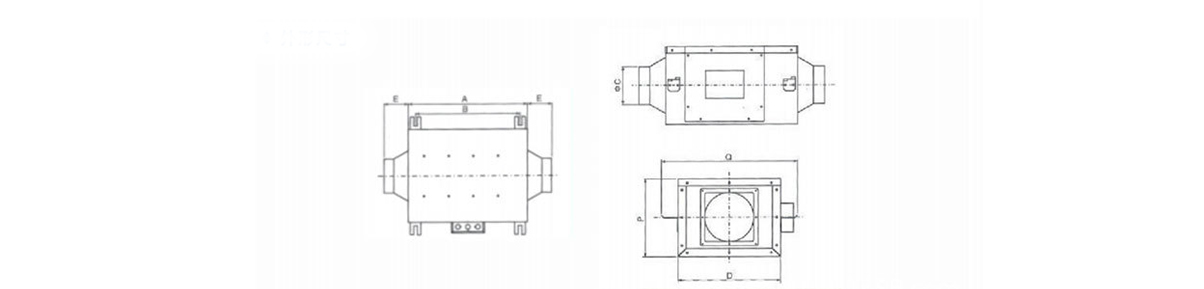

    Dimensions

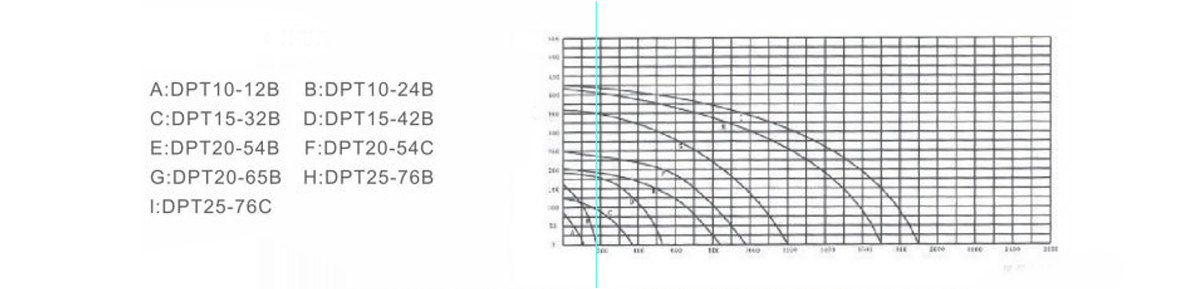

    performance curve

    technical parameter
    model Rated voltage
    V~
    Rated frequency
    Hz
    input frequency
    w
    Air volume
    m2/h
    Maximum static pressure
    Pa
    noise
    dB
    DPT10-12B 220 Rated frequency
    Hz
    25 150 80 20
    DPT10-24B 30 220 160 23
    DPT15-32B 45 380 125 27
    DPT15-42B 60 600 190 29
    DPT20-54B 80 800 200 35
    DPT20-54C 160 1000 240 37
    DPT20-65B 180 1200 360 41
    DPT25-76B 185 1700 420 43
    DPT25-76C 185 1900 430 46
    technical parameter
    model A B C D E P Q Pipe size
    DPT10-12B 340 298 98 240 70 200 285 Φ100
    DPT10-24B 340 298 98 240 70 200 285 Φ100
    DPT15-32B 340 298 148 240 75 240 285 Φ150
    DPT15-42B 390 348 148 270 75 280 315 Φ150
    DPT20-54B 420 378 196 340 90 260 385 Φ200
    DPT20-54C 490 448 196 370 90 320 415 Φ200
    DPT20-65B 520 478 196 400 90 365 445 Φ200
    DPT25-76B 590 548 246 400 90 380 445 Φ250
    DPT25-76C 590 548 246 400 90 380 445 Φ250
