ECA-SQ-10/12 inches Silent pipeline mixed flow fan

◆Product Features

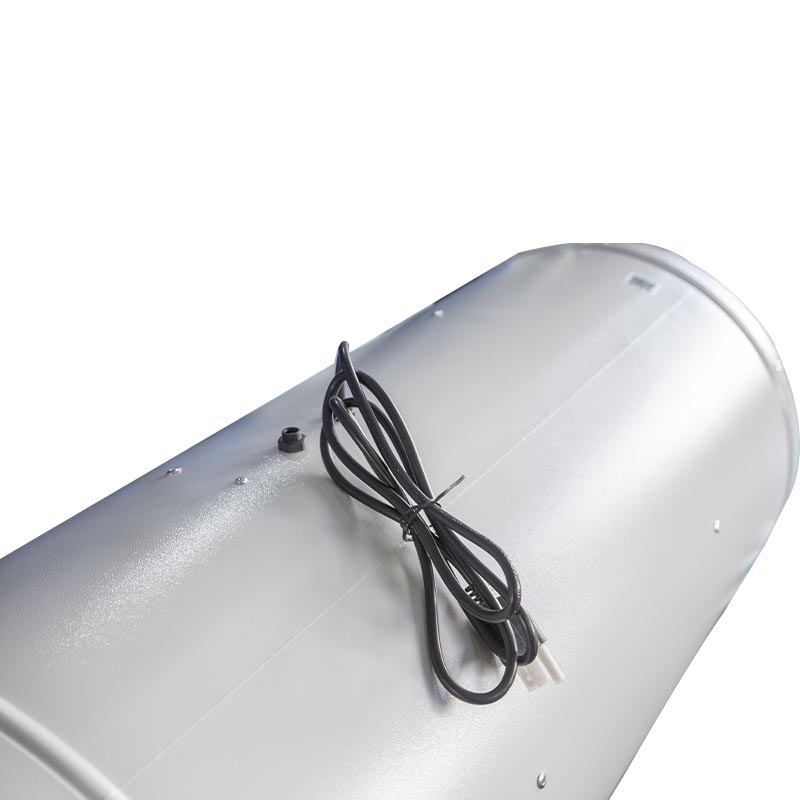

The fan adopts a cold-rolled sheet metal paint shell, an engine-type double-blade structure and a leading-edge EC DC variable frequency motor. The motor has its own overload protection function. Low consumption and energy saving, and can bring large air volume and high air pressure. Digital signal control, multi-directional adapt to the market demand, using mini 0% to 100% stepless speed regulation, optional wall-mounted speed regulator, LCD touch screen, remote wireless remote control.


◆Performance parameters

Model Specification Name	Rotating Speed（r/min）	Air Volume（m3/h）	Wind Pressure (Pa)	Power (KW)	Noise (dB)	Weight (KG)	Dimensions(CM)
ECA-10-SQ	2600	1750	510	0.14	55	14.1	80*35*35
ECA-12-SQ	2400	3100	670	0.28	55	19.2	90*40*40

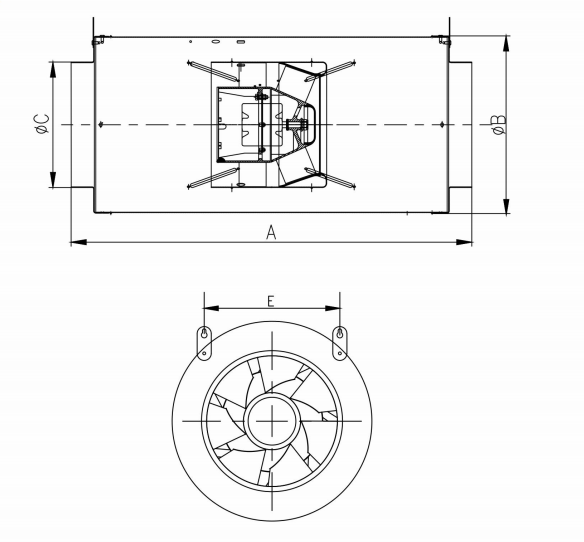

◆Dimensions

Model Specifications	A	B	C	E
ECA-10-SQ	798	354	250	225
ECA-12-SQ	898	404	300	225

◆Small and convenient for more scenarios

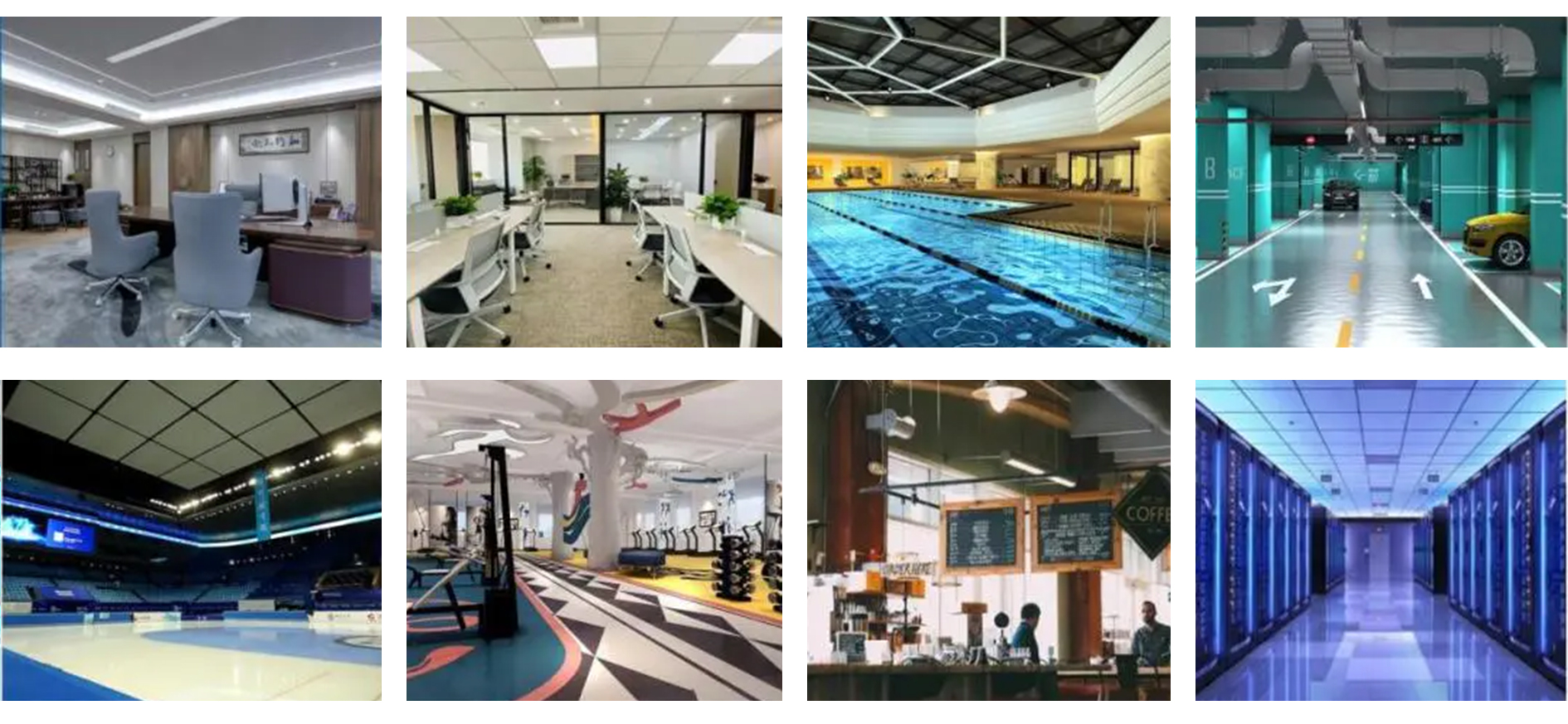

The fan is small in size and widely used; easy to install in small spaces; suitable for residential, Internet cafes, KTV, restaurants, offices, office buildings, shopping malls, bars, medical centers, laboratories, computer rooms, chess and card rooms, gymnasiums, beauty salons, basements, fitness clubs, Swimming pools, production workshops and other environments that require ventilation.

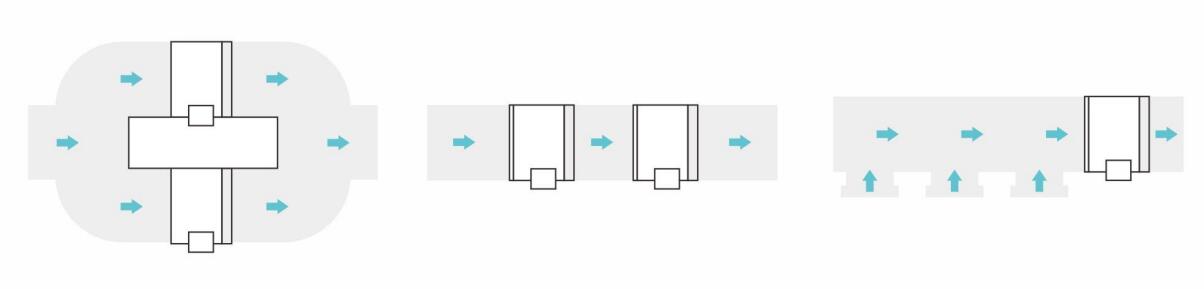

Different splicing schemes can be selected according to different needs: parallel installation, series installation, one-to-one installation.

Parallel installation: Parallel installation of the same wind pressure in the pipeline can increase the air volume, which is suitable for places that require rapid ventilation.
Series installation: The wind pressure of the pipeline remains unchanged, and the series installation can increase the wind pressure, which is suitable for long distance and high pipeline air supply places.
One tow N installation: One fan can drag multiple air outlets, which is suitable for places where multiple spaces are ventilated.
