ECA-EC 4/6/8 inches Diagonal Flow Duct Fan

ECA-EC 4/6/8 inches Diagonal Flow Duct Fan

ECA-EC 4/6/8 inches Diagonal Flow Duct Fan can be widely used in the ventilation of civil residences, hotels, office buildings, urban complexes, planting and hydroponic projects where the space is small and the pipeline has a certain driving force along the route. Used to ventilate hydroponic grow rooms, transmit heating/cooling, cool AV closets and exhaust odors.Dynamic temperature and humidity programming with timer, growth cycle, scheduling, minimum speed.Connect our app via Bluetooth to access advanced programs, alarms, notifications and view climate data.The mixed flow design combines with the PWM controlled EC-motor for truly quiet and energy efficient performance.
Make an inquiry
  • ECA-EC 4/6/8 inches Diagonal Flow Duct Fan
  • ECA-EC 4/6/8 inches Diagonal Flow Duct Fan
  • ECA-EC 4/6/8 inches Diagonal Flow Duct Fan
  • ECA-EC 4/6/8 inches Diagonal Flow Duct Fan
  • Description
  • ◆Product Features

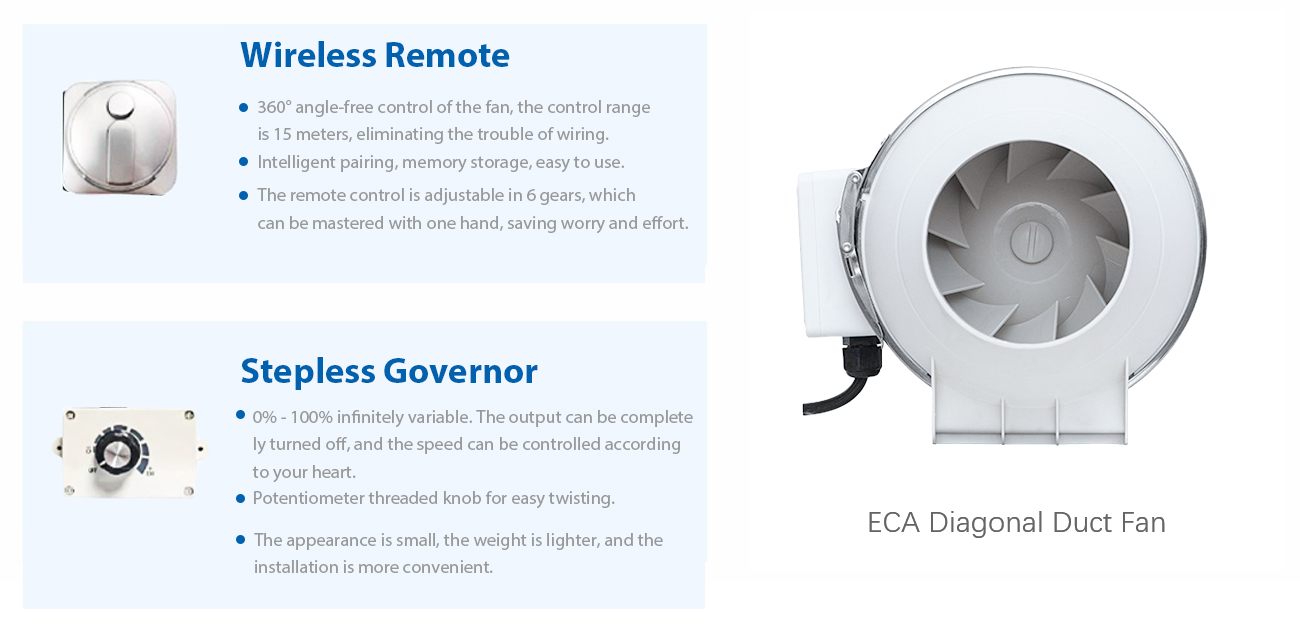

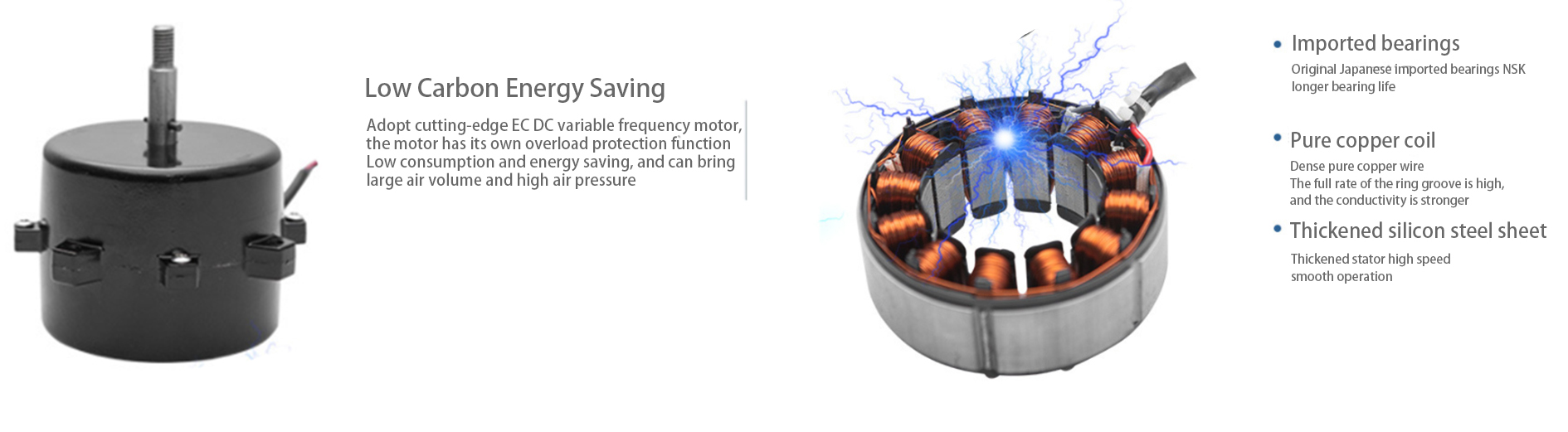

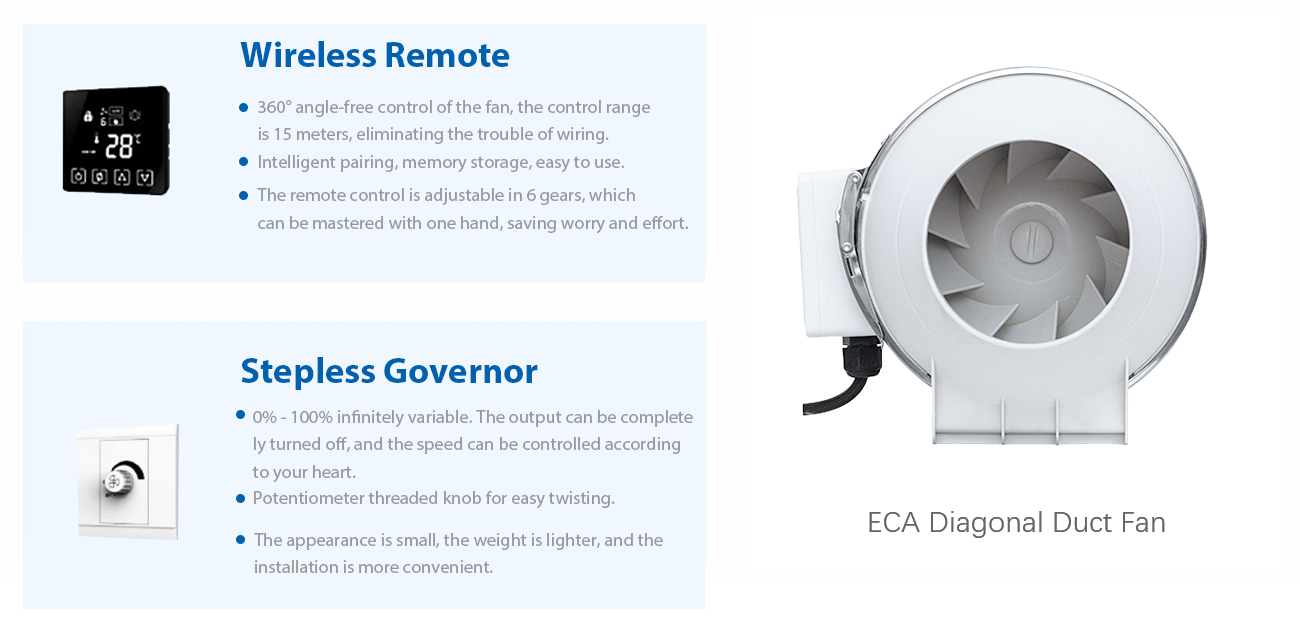

    The fan adopts a cold-rolled sheet metal paint shell, an engine-type double-blade structure and a leading-edge EC DC variable frequency motor. The motor has its own overload protection function. Low consumption and energy saving, and can bring large air volume and high air pressure. Digital signal control, multi-directional adapt to the market demand, using mini 0% to 100% stepless speed regulation, optional wall-mounted speed regulator, LCD touch screen, remote wireless remote control.




    ◆Operating Conditions



    ◆Applicable occasions
    ECA fans can be widely used in the ventilation of civil residences, hotels, office buildings, urban complexes, planting and hydroponic projects where the space is small and the pipeline has a certain driving force along the route.


    ◆Product configuration
    It is widely used in families, shopping malls, restaurants, hotels, entertainment venues and other places. It is a modern daily necessities and a supporting product for air conditioners.
    ◆Performance parameters

    type 100 (4 inches)


    •Parameter
    Power:
    0~25W
    		 Air volume:
    0~300m3/h
    Current:
    0~0.23/0.12A
    		 Static pressure:
    0~180Pa
    Voltage:
    110V/220V
    		 Rotating speed:
    0~2600r/min

    Type 150 (6 inches)

    •Parameter
    Power:
    0~45W
    		 Air volume:
    0~540m3/h
    Current:
    0~0.41/0.21A
    		 Static pressure:
    0~300Pa
    Voltage:
    110V/220V
    		 Rotating speed:
    0~2600r/min
    200 type (8 inches)•Parameter
    Power:
    0~80W
    		 Air volume:
    0~900m3/h
    Current:
    0~73/0.36A
    		 Static pressure:
    0~380Pa
    Voltage:
    110V/220V
    		 Rotating speed:
    0~2600r/min

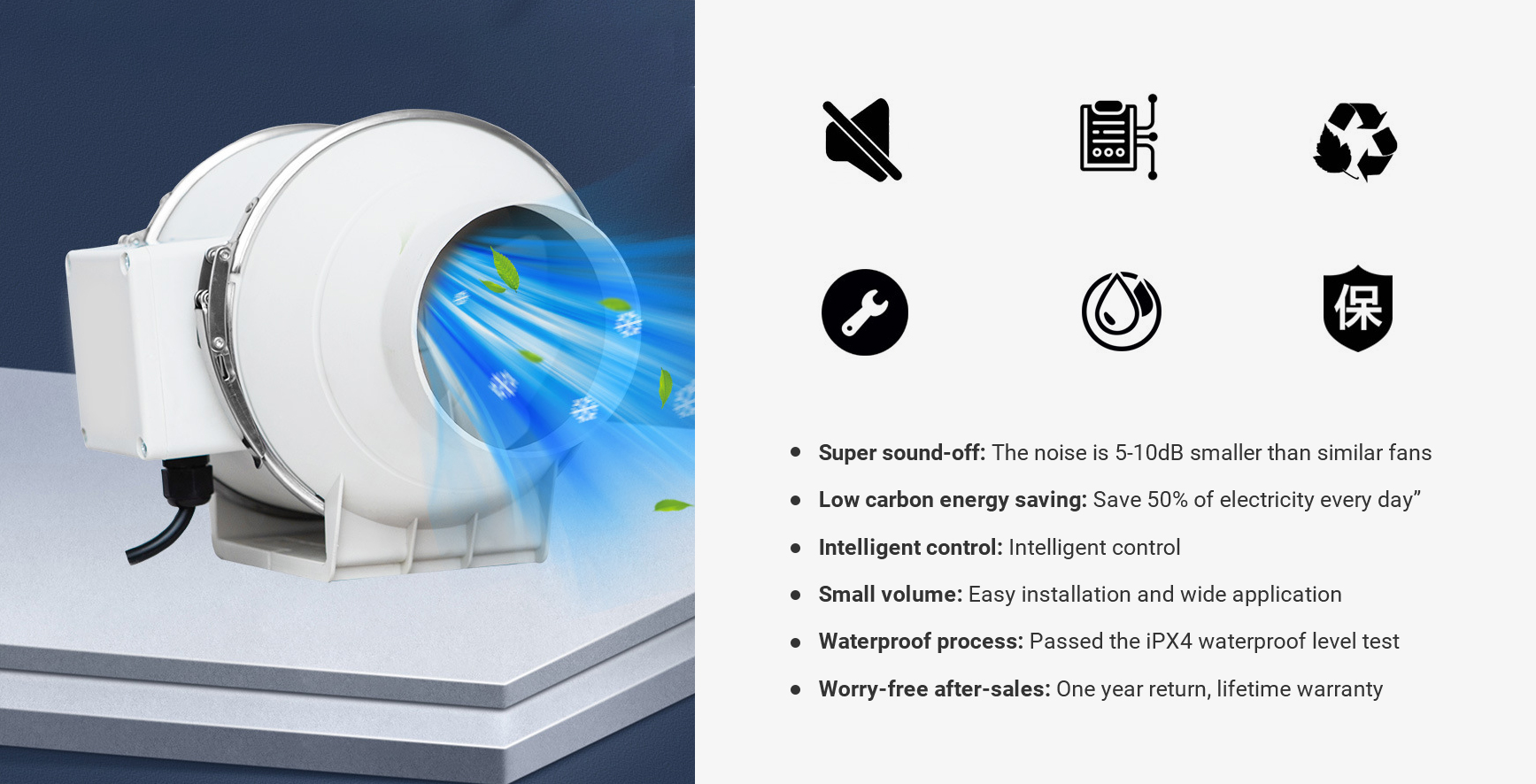

    ◆Small and convenient for more scenarios
    The fan is small in size and widely used; easy to install in small spaces; suitable for residential, Internet cafes, KTV, restaurants, offices, office buildings, shopping malls, bars, medical centers, laboratories, computer rooms, chess and card rooms, gymnasiums, beauty salons, basements, fitness clubs, Swimming pools, production workshops and other environments that require ventilation.
    Different splicing schemes can be selected according to different needs: parallel installation, series installation, one-to-one installation.
    Parallel installation: Parallel installation of the same wind pressure in the pipeline can increase the air volume, which is suitable for places that require rapid ventilation.
    Series installation: The wind pressure of the pipeline remains unchanged, and the series installation can increase the wind pressure, which is suitable for long distance and high pipeline air supply places.
    One tow N installation: One fan can drag multiple air outlets, which is suitable for places where multiple spaces are ventilated.
    According to different application scenarios and needs, users can choose different installation methods for duct fan installation: front installation, ceiling installation, side wall installation.
