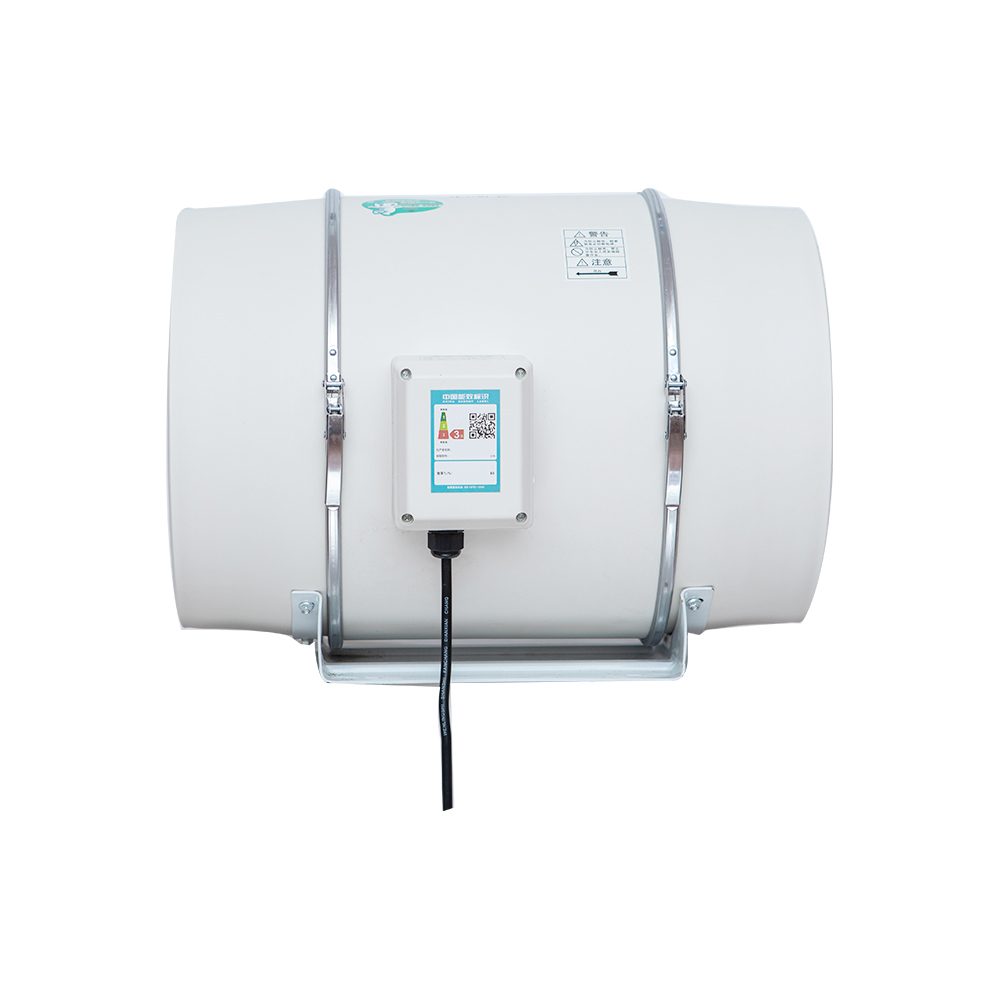

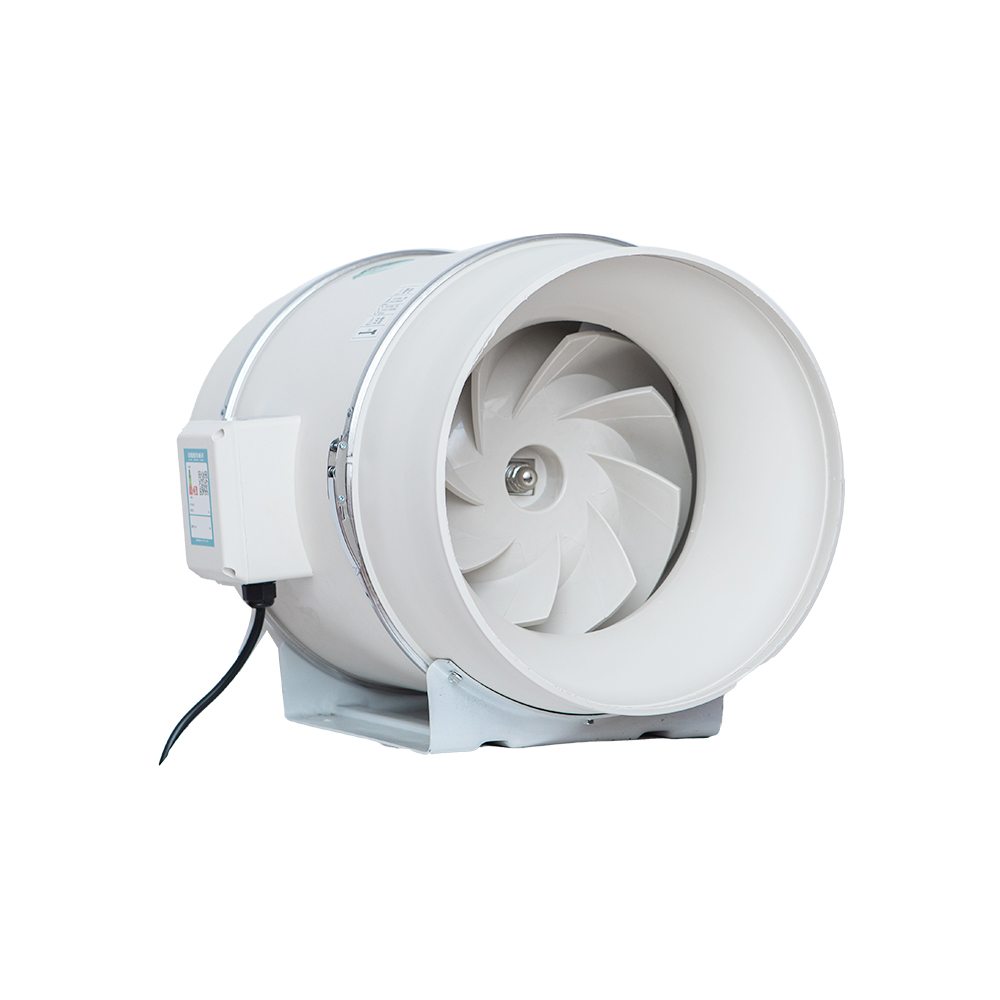

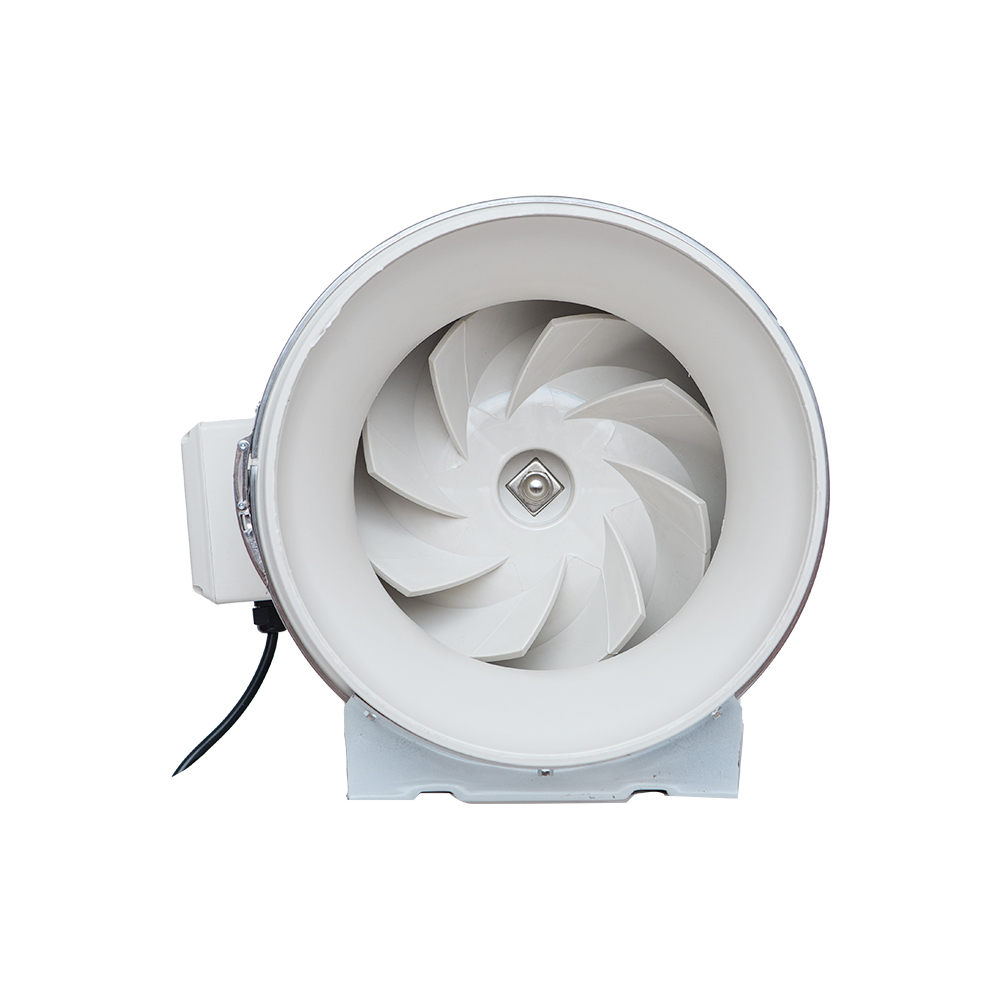

ACA-8/10/12 inches Diagonal Duct Fan

ACA-8/10/12 inches Diagonal Duct Fan

8 inches/10 inches/12 inches Diagonal Duct Fan are used in indoor grow facilities and vertical farms, heating and cooling transfer, commercial drying and air filtration applications. Our inline blowers can also create negative pressure environments, simulate wind, exhaust odors and smoke as well as intake fresh air from outdoors
EC fan provides flexible control speed – choose any speed from 0 to 100% using the included variable speed controller without creating background noise or hum at low speeds.
Make an inquiry
  • ACA-8/10/12 inches Diagonal Duct Fan
  • ACA-8/10/12 inches Diagonal Duct Fan
  • ACA-8/10/12 inches Diagonal Duct Fan
  • Description
  • ◆Product Features

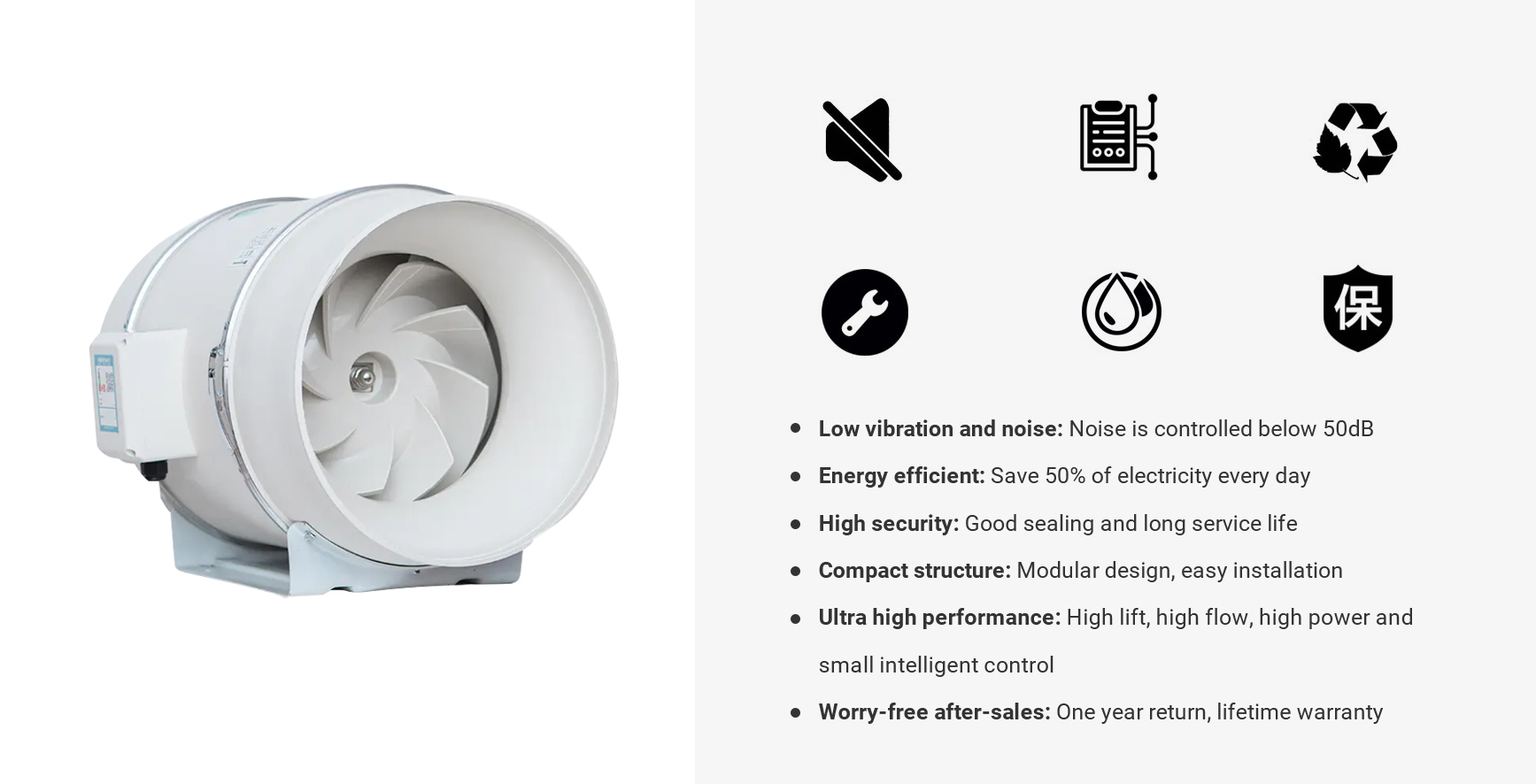

    The fan adopts a cold-rolled sheet metal paint shell, an engine-type double-blade structure and a leading-edge EC DC variable frequency motor. The motor has its own overload protection function. Low consumption and energy saving, and can bring large air volume and high air pressure. Digital signal control, multi-directional adapt to the market demand, using mini 0% to 100% stepless speed regulation, optional wall-mounted speed regulator, LCD touch screen, remote wireless remote control.

    ◆Operating Conditions



    ◆Applicable occasions
    ECA fans can be widely used in the ventilation of civil residences, hotels, office buildings, urban complexes, planting and hydroponic projects where the space is small and the pipeline has a certain driving force along the route.
    ◆Product configuration
    It is widely used in families, shopping malls, restaurants, hotels, entertainment venues and other places. It is a modern daily necessities and a supporting product for air conditioners.
    ◆Performance parameters
    200 type (8 inches)•Parameter
    Power:
    130W
    		 Air volume:
    900m3/h
    Current:
    0.53A
    		 Static pressure:
    380Pa
    Voltage:
    220V
    		 Rotating speed: 2600r/min

    250 type (10 inches)

    •Parameter
    Power: 225W Air volume: 1450m3/h
    Current: 1.2A Static pressure: 488Pa
    Voltage: 220V Rotating speed: 2450r/min

    315 type (12 inches)

    •Parameter
    Power:
    320W
    		 Air volume:
    2900m3/h
    Current:
    1.5A
    		 Static pressure:
    630Pa
    Voltage: 220V Rotating speed:
    2500r/min

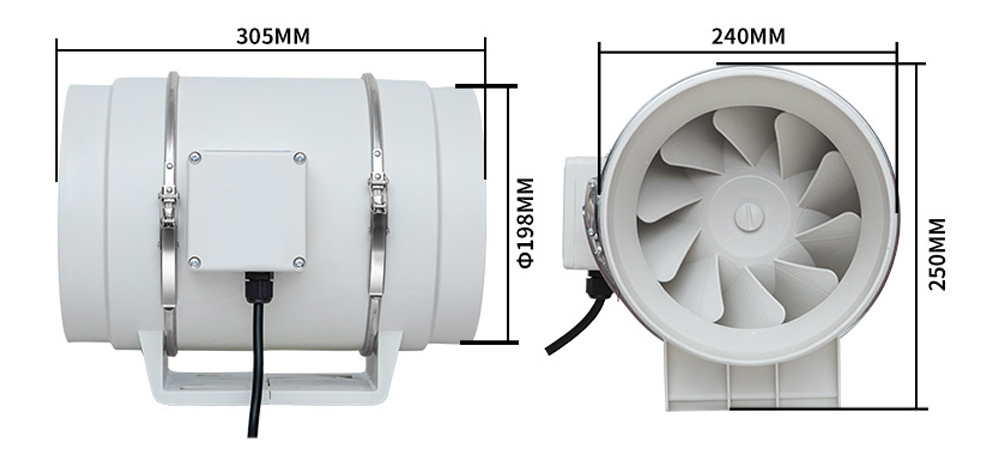

    ◆Small and convenient for more scenarios
    The fan is small in size and widely used; easy to install in small spaces; suitable for residential, Internet cafes, KTV, restaurants, offices, office buildings, shopping malls, bars, medical centers, laboratories, computer rooms, chess and card rooms, gymnasiums, beauty salons, basements, fitness clubs, Swimming pools, production workshops and other environments that require ventilation.
    Different splicing schemes can be selected according to different needs: parallel installation, series installation, one-to-one installation.
    Parallel installation: Parallel installation of the same wind pressure in the pipeline can increase the air volume, which is suitable for places that require rapid ventilation.
    Series installation: The wind pressure of the pipeline remains unchanged, and the series installation can increase the wind pressure, which is suitable for long distance and high pipeline air supply places.
    One tow N installation: One fan can drag multiple air outlets, which is suitable for places where multiple spaces are ventilated.
    According to different application scenarios and needs, users can choose different installation methods for duct fan installation: front installation, ceiling installation, side wall installation.
