DWEX series side wall fan Manufacturers

Home / Product / DWEX series side wall fan

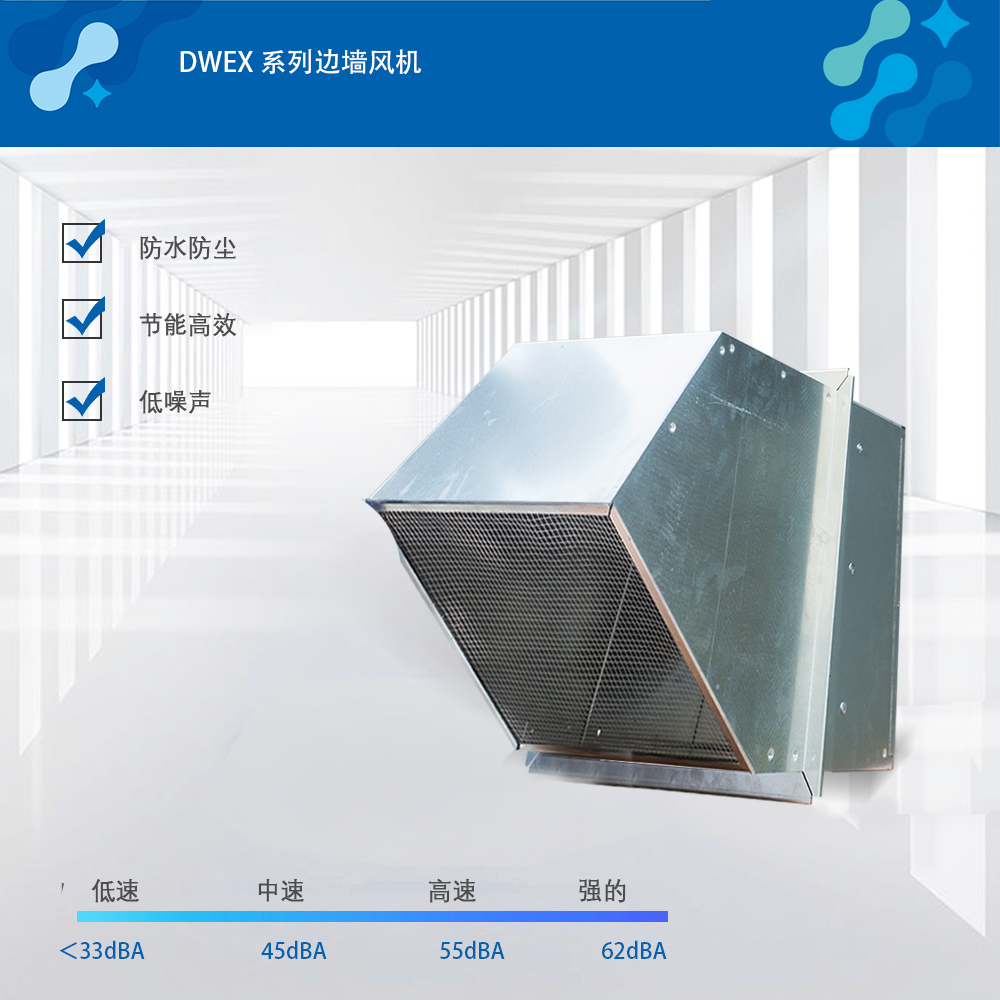

DWEX series side wall fan

DWEX series side wall fan

  • Description
  • Quiet and low noise
    Noise-cancelling box
    high air volume
    Centrifugal high pressure fan
    metal shell
    High-quality steel plate without welding
    small volume
    Easy installation and wide application
    Processing technology
    Fan impeller and casing are made of high-quality steel plate
    Worry-free after-sales
    One year return, lifetime warranty
    technical parameter
    model Air volume
    m/h
    static pressure
    Pa
    Voltage
    v
    frequency
    Hz
    Motor Power
    w
    current
    A
    Rotating speed
    rlmin
    capacitance
    ulE
    DWEX-250D4 1700 50 380 50 60 0.15 1420 -
    DWEX-250E4 1500 50 220 50 60 0.25 1350 2
    DWEx-300D4 1800 50 380 50 80 0.2 1400 -
    DWEx-300E4 1600 50 220 50 80 0.37 1380 3
    DWEX-350D4 2800 50 380 50 125 0.35 1380 -
    DWEX-350E4 2200 50 220 50 125 0.53 1360 4
    DWEX-400D4 3800 45 380 50 180 0.4 1400 -
    DWEX-400E4 3600 50 220 50 180 0.8 1400 6
    DWEX-450D4 6500 50 380 50 250 0.52 1350 -
    DWEX-450E4 6300 50 220 50 250 1.15 1360 8
    DWEX-500D4 7800 50 380 50 370 0.7 1350 -
    DWEx-500E4 7600 50 220 50 370 1.75 1200 10
    DWEX-550D4 9300 50 380 50 550 1.25 1300 -
    DWEX-550E4 8300 50 220 50 550 2.1 1180 10
    DWEX-600D4 12500 100 380 50 750 1.6 1380
    DWEX-650D4 16500 100 380 50 1900 3.5 1350
    DWEx-700D6 13000 50 380 50 1000 2.3 920
    DWEX-750D6 16200 50 380 50 1200 3.2 910
    DWEX-800D6 23000 75 380 50 1400 3.4 940
    DWEx-900D6 25000 75 380 50 1600 3.2 940

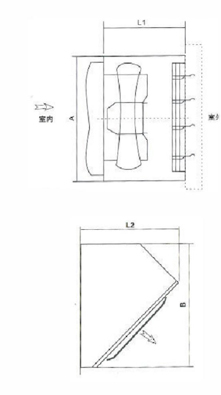

    Dimensions

    model A L1 B Fan weight Kg Rain cover weight
    Kg
    DWEX-250D4/E4 320 200 295 290 11 5.5
    DWEx-300D4/E4 370 200 325 340 12 6
    DWEx-350D4/E4 420 240 360 390 14.5 8.5
    DWEX-400D4/E4 470 260 400 440 15.5 7
    DWEx-450D4/E4 520 260 430 490 17.5 7.5
    DWEX-500D4/E4 570 260 470 540 20.5 8
    DWEX-550D4/E4 620 280 495 590 22 8.5
    DWEX-600D4 765 400 590 735 24.5 g
    DWEX-650D4 810 450 615 780 26.5 9.5
    DWEX-700D4 855 460 635 825 28.5 10
    DWEX-750D4 920 500 670 890 32 12
    DWEx-800D4 975 500 705 945 33 14
    DWEx-900D4 1075 500 705 1045 34 16

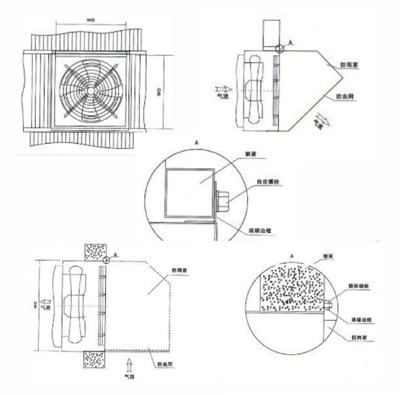

    Installation details

    model Side wall opening size
    mm square
    WEXD-250D4/E4 340x340
    WEXD-300D4/E4 390x390
    WEXD-350D4/E4 440x440
    WEXD-400D4/E4 490x490
    WEXD-450D4/E4. 540x540
    WEXD-500D4/E4 590x590
    WEXD-550D4/E4 640x640
    WEXD-600D4 790x790
    WEXD-650D4 835x835
    WEXD-700D6 880x880
    WEXD-750D6 945x945
    WEXD-800D6 1000x1000
    WEXD-900D6 1100x1100

Shaoxing Zhixin Electromechanical Technology Co., Ltd.

Shaoxing Zhixin Electromechanical Technology Co., Ltd. is an innovative technology company specializing in the research and development and production of high-efficiency and low-noise fans, intelligent fans, silent pumps, propellers, intelligent monitoring and fault warning systems for equipment, and providing intelligent operation and maintenance management services for ventilation and fluid transportation systems. Established in March 2018, it is located in Shangyu, Shaoxing, the hometown of Chinese fans, with a registered capital of 11.11 million yuan.
In recent years, the company has developed rapidly, development with technological innovation and aiming to occupy high-end markets.
As Custom DWEX series side wall fan Manufacturers, the company has set up a technology R&D center based on the backbone of the special fluid machinery research team of Zhejiang University's Institute of Advanced Technology, with three doctoral degree holders, four master's degree holders, one 151 talents from Zhejiang Province and one specially appointed expert. We are Wholesale DWEX series side wall fan Factory, Suppliers, the company has carried out in-depth industry-university-research cooperation with Zhejiang University, China Shipbuilding Group's affiliated research institutes and other military enterprises, and has mastered core technologies in high-efficiency low-noise fans, intelligent operation and maintenance of fans, intelligent detection and fault warning of fans, energy-saving transformation of ventilation systems, etc. The company has a number of invention patents and software copyrights on special fluid equipment such as low-noise and low-vibration pumps.
  • 0

    Establish In

  • 0+

    Number Of Staff

  • 0+m2

    Plant Area

  • 0+

    Export Country

Our Factory

As Wholesale DWEX series side wall fan Suppliers, we have a professional technical team, advanced equipment, and excellent product quality.

Certification

  • Customization

    We have a strong R&D team,and we can develop and produce products according to the drawings or samples the customers offered.

  • Quality

    We have our own testing lab and advanced and complete inspection equipment, which can ensure the quality of the products.

  • Technology

    We have advanced production equipment and experienced technical personnel to ensure our product quality.

  • Service

    We focus on developing high-quality products for top-end markets. Our products are in line with international standards.
